High-Pressure Gas Cylinder Cascade Systems

Gas Line Solution specializes in the custom design, fabrication, and commissioning of high-pressure gas cylinder cascades for industrial, pharmaceutical, petrochemical, and research applications.

A gas cylinder cascade is a group of high-pressure cylinders interconnected through a manifold system, allowing for continuous, regulated gas supply to downstream processes. Our cascades are designed to PESO regulations and fabricated using SS 316L, brass, and copper components of the highest quality.

Our experienced engineers handle everything from initial design and engineering calculations through to fabrication, third-party inspection, and final commissioning at your facility.

Key Service Highlights

Custom Design & Engineering Tailored cascade configurations to match your exact flow rate, pressure, and gas type requirements.

Premium-Grade Materials SS 316L tubing and fittings, brass valves, copper pigtails — selected for compatibility and longevity.

PESO Compliant Fabrication All cascades are fabricated in strict compliance with PESO (Petroleum Explosives Safety Organisation) standards.

Wide Gas Compatibility Systems designed for N₂, O₂, H₂, Argon, CNG, CO₂, and specialty gases as required.

Third-Party Inspection Support We coordinate with approved inspectors for certification and documentation as per statutory requirements.

Cascade Specifications

Cylinder Capacity	12 to 300 cylinders
Cage Structure	Alloy Steel, Galvanized
Working Pressure	Up to 300 bar
Manifold Material	SS 316L / Brass
Gas Compatibility	O₂, N₂, H₂, Ar, CO₂, CNG, DA
Handling	Forklift & Crane Compatible
Certification	PESO Approved

Request a Quote

Product Range

Vertical & Horizontal Cascade Configurations

We fabricate both vertical and horizontal cylinder quads and cascades — customised to your site layout, gas type, and cylinder count.

Vertical Quad

Vertical Cylinder Quad

The vertical cylinder quad is the standard configuration for cylinder count up to 16 cylinders. Cylinders stand upright in a solid alloy steel cage, maximising packing density while allowing easy access for cylinder swaps.

Up to 16 cylinders per unit
Compact footprint, suitable for limited space
Solid cage, galvanised finish
Forklift / hydra handling provisions
Integrated pressure gauge & valves

Horizontal Quad

Horizontal Cylinder Quad

The horizontal cascade is designed for higher cylinder counts (20 or more) and trailer-mounted configurations. Cylinders lie horizontally in a heavy-duty structural frame, enabling skid-mounted or vehicle-mounted gas supply at any site location.

20+ cylinders; up to 300 cylinders
Trailer / skid-mounted design
Heavy alloy steel structure
Crane & forklift lifting provisions
Discharge manifold, safety valves, gauges

Cascade Trailer

Hydrogen Cascade Trailer

We fabricate complete hydrogen cascade trailer assemblies for bulk hydrogen delivery and storage at remote sites. The trailer-mounted horizontal cascade can be disconnected and left on-site as a temporary storage and supply vessel.

Designed for H₂ high-pressure service
Trailer skid structure with lashing points
Discharge manifold & pressure regulation
Safety relief valves, burst discs
Suitable for O₂, N₂, Ar, CNG as well

Enquire Now

Technical Data Sheet

Cascade Technical Specifications

Detailed dimensional and capacity data for our standard vertical and horizontal cylinder cascade configurations. All units fabricated to IS/PESO standards.

Working Pressure: 204 kg/cm² Test Pressure: 232 kg/cm² Gases: O₂ · N₂ · H₂ · Ar · He · CO₂

Vertical Type Cascade — 50 Ltrs Water Capacity Cylinders

Cylinder: OD 232mm ±1% · Length 1450mm · Weight 57 kg each

No. of Cylinders	Water Vol. (Ltrs)	Gas Volume (m³)	Length (mm)	Width (mm)	Height (mm)	Empty Wt. (kg)
7 Cylinders	350	88	850	850	2100	695
9 Cylinders	450	117	1075	850	2100	870
12 Cylinders	600	156	1075	1075	2100	1110
16 Cylinders	800	208	1300	1075	2100	Custom

Horizontal Type Cascade — 50 Ltrs Water Capacity Cylinders

Cylinder: OD 232mm ±1% · Length 1450mm · Weight 57 kg each

No. of Cylinders	Water Vol. (Ltrs)	Gas Volume (m³)	Length (mm)	Width (mm)	Height (mm)	Empty Wt. (kg)
16 Cylinders	800	156	2100	1750	1049	1582
25 Cylinders	1250	244	2100	1750	1387	2333
36 Cylinders	1800	351	2100	1750	1800	3250
48 Cylinders	2400	468	2100	1750	2250	4250

Horizontal Type Cascade — 160 Ltrs Water Capacity Cylinders

Cylinder: OD 356mm ±1% · Length 1930mm · Weight 153 kg each

No. of Cylinders	Water Vol. (Ltrs)	Gas Volume (m³)	Length (mm)	Width (mm)	Height (mm)	Empty Wt. (kg)
16 Cylinders	2560	490	2100	2250	1824	On Request
25 Cylinders	4000	766	2100	2250	2180	On Request
36 Cylinders	5760	1103	2100	2250	2536	On Request
48 Cylinders	7680	1470	2100	2250	3248	On Request

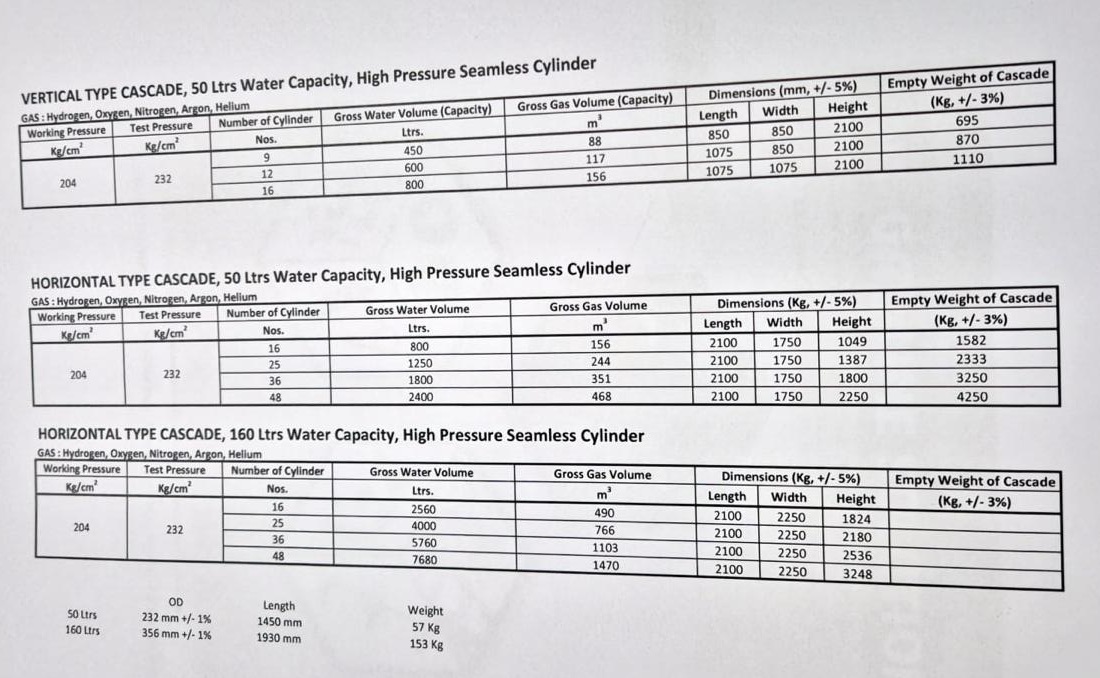

Gas Line Solution — Cascade Technical Data Sheet

Original Technical Data Sheet — Gas Line Solution, Dahej

Custom Sizes on Request

The above tables list our standard cascade configurations. We regularly fabricate non-standard sizes to match specific site footprint, cylinder count, or gas volume requirements.
